RETRO-REFLECTIVE SIGN BOARDS
Traffic control device is the medium used for communicating between traffic engineer and road users, unlike other modes of transportation, there is on control on the drivers using the road. Here a traffic control device comes to the help of the traffic engineer. one of the major types of traffic control devices used are TRAFFIC SIGNS. Different types of traffic signs are regulatory signs, warning signs and informatory signs. These traffic signs cover all traffic programs, safety measure and meet entire specifications world wide. We even manufacture various traffic signs according to client need.

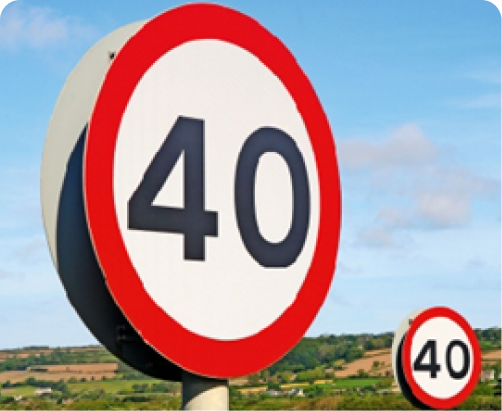

MANDATORY/REGULATOR SIGNS
These signs require the drive to obey the signs for the safety of other road users. These signs are also called mandatory sign because it is mandatory that the drivers must obey these signs. If the driver fails ti obey them, the control agency has the right to take legal action against the driver. These signs are primarily meant for the safety of other road users. These signs have generally black legend on a white background. They are circular in shape with red boarders.
CAUTIONARY/WARNING SIGNS
These signs are for the safety of oneself who is driving and advice the drivers to obey these signs. Warning signs or Cautionary signs give information to the driver about the impending road condition. They advice the driver to obey the rules. These signs are meant for the own safety of drivers. They call for extra vigilance from the part of drivers. The color convention used for this type of signs is that the legend will be black in color with a white background. The shape used is upward triangular or diamond shape with red boarders.
INFORMATORY / GUIDE SIGNS
These signs provide information to the driver about the facilities available ahead, and the route and distance to reach the specific destinations informative signs also called guide signs, are provided to assist the drivers to reach their desired destinations. These are predominantly meant for the drivers who are unfamiliar to the place. The guide signs are redundant for the users who are accustomed to the location.
INFORMATORY SIGNAGES
The signs illustrated in this section give information to the road user regarding their location or facilities available in the vicinity or about the Destination. The detailed dimensioned drawings for direction information signs with guidance for the design.

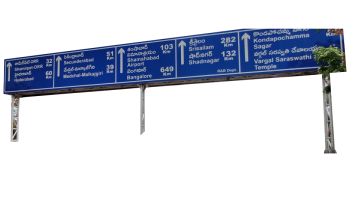

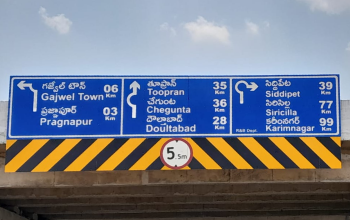

OVER HEAD GANTRY SIGNS
OVER HEAD GANTRY SIGNS

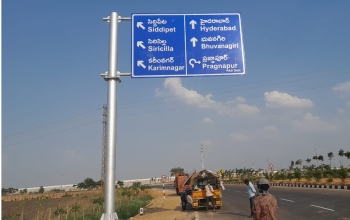

CANTILEVER SIGNS
CANTILEVER SIGNS
RAILWAY SIGNAGES
While travelling by the train we often see different signs symbols besides the railway track. But many of us are not aware about these signs. These signs can only be understood by the person who is working in the Indian railways. But in this article we are publishing the detail of such signs to make you aware.
WHISTLE INDICATOR
SPEED INDICATOR
TERMINAL INDICATOR
STOP
UNGUARDED RLY CROSSING
MANNED LEVEL CROSSING
SPEED BREAKER
REFUGE INDICATOR
MANDATORY SIGNAGES
We impart excellent assortment of Spring Posts for clients according to their desired specification. Operating as spring post manufacturer and supplier, we have a large available with us, offered at competitive rates.
CAUTIONARY SIGNS
WARNING SIGNS

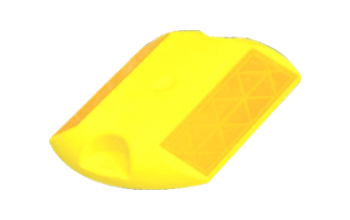

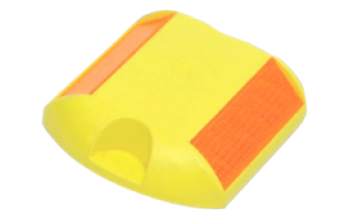

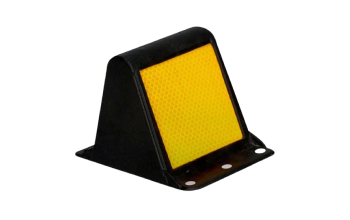

RAISED PAVEMENT MARKERS
We provide a large of plastic road studs for the client according to their demands and expectations. The plastics glow road studs or road stud reflectors are extremely durable devices providing day and night visibility in adverse weather conditions. These are reflectorized, i.e., reflect light from vehicle’s headlights to driver’s eye. These provide a definite and clear outline of pavement marking during poor visibility conditions like fog, rains, and darkness.
Product Code : SIPL 100
Dimension : 100 x90x18 mm
Direction : Two way acrylic prismatic reflector
Colors : Yellow, White, Red
Product Code : 3M Road Stud
Dimension : 100 x90x16 mm
Direction : Two way acrylic prismatic reflector
Colors : Yellow, White, Red
Meet ASTM-D specification

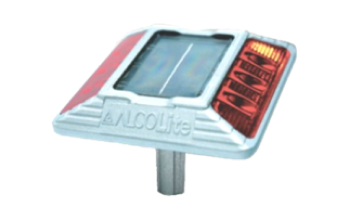

Solar Road Stud
Product Code : SIPL- 201-A
Dimension : 132 x122x72 mm
Direction : Two way reflector
LED : 3 No. Each Side
Colors : Amber & Red
Shank : Available
Warranty : 1 Year

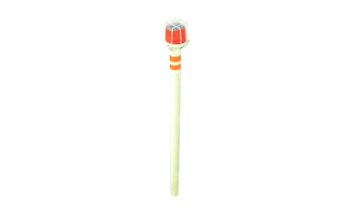

Solar Delineator
Product Code : SIPL- 202
Length Dimension : 70 x70x100 mm
Pipe Dimension : 48 X 1000 mm
Direction : 360 Degrees Round
Light : Protection with Top Ms Mesh Fitted
Viewing Distance : 500 Meters
Warranty : 1 Year

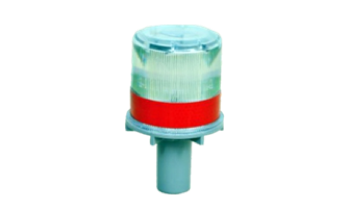

Solar Warning Light
Product Code : SIPL- 203-A
Height : 15.5 cm
Dia : 9 cm
Function : Flash Close ABS Base
LED : 4 Pcs Led Fitted
Battery : Inbuilt

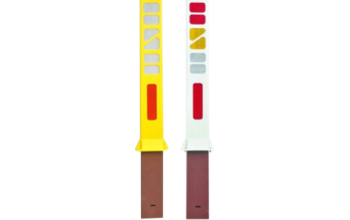

Reflective Rigid Delineator
Product Code : SIPL-RD-T11
Height : 1200 mm
Width : 110 mm X 34 mm
Reflective Area : 300 Sq.Cms
Median marker
Made of tough, impact-resistant thermoplastic body, reflectorized on either side using florescent yellow prismatic sheeting. 3M Median Marker is a highly durable reflective product for medians. Designed to take the rigors of natural weathering, the product makes the median extremely visible thereby preventing accidents and saving invaluable lives on roads.
THERMOPLASTIC ROAD MARKING
The hot-applied compound is specially formulated with superior quality imported raw material. This is a synthetic resin-based thermosetting material which is having better features comparing to conventional applied cold applied paints. The thermoplastic material consists of 100% solids and it environment friendly as it is solvent-free. Hotmelt Thermoplastic road marking material is generally regarded as superior and more cost-effective than otherpaints marking as it has better durability, reflectivity, visibility and provides less traffic disruption during applications.

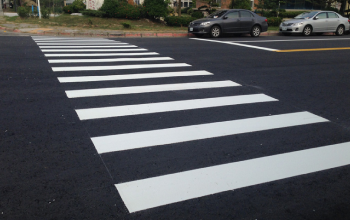

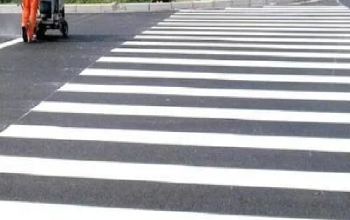

ZEBRA CROSSING

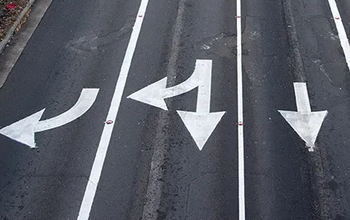

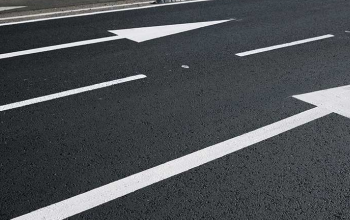

ARROW MARKS
ZEBRA CROSSING
ARROW MARKS

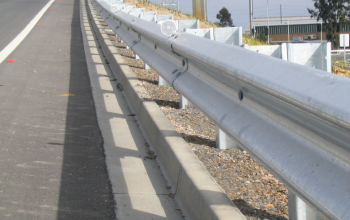

W Beam CRASH BARRIERS
The surge in vehicular road traffic and the increase in the speed limit on the highways have led to imposing stronger infrastructure on road for a safe road network. Barriers help in diverting oncoming traffic and prohibit the entry of the vehicle into a specific dangerous area. A W beam crash barrier is semi-rigid protection that prevents vehicles from hazardous zones

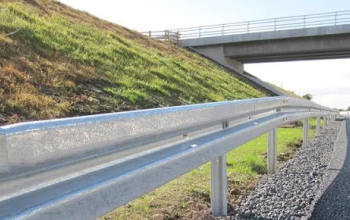

W Beam CRASH BARRIERS
W Beam CRASH BARRIERS

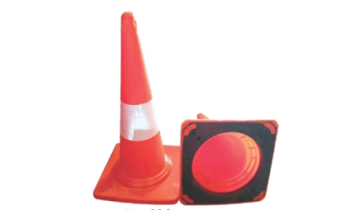

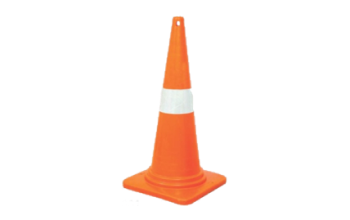

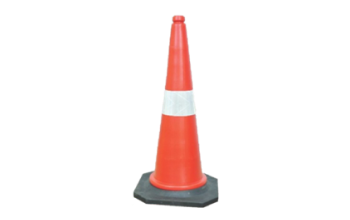

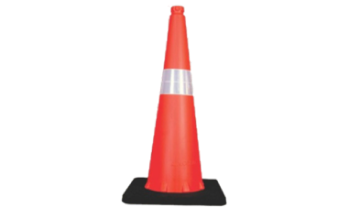

TRAFFIC CONES
Heavy Duty UV Stabilized Non-Fading Colored Good Quality Traffic Cones 3M manufactures a wide range of heavy duty traffic cones which are made from strong durable plastic making them excellent for external use in all conditions. They’re also shakable for easy storage when not in use
Product Code : SIPL-601
Height : 750 mm
Weight : 1.2Kgs.
Base : 385X385 mm
Material : LDPE
Reflective Tape Size : 100 mm
Product Code : SIPL-602
Height : 750 mm
Weight : 1.5Kgs.
Base : 385X385 mm
Material : HDPE
Reflective Tape Size : 100 mm
Product Code : SIPL-604
Height : 750 mm
Weight : 3.4Kgs.
Base : 400X400 mm
Material : HDPE
Reflective Tape Size : 100 mm
Product Code : SIPL-606
Height : 750 mm
Weight : 4Kgs.
Base : 385X385 mm
Material : HDPE
Reflective Tape Size : 100 mm

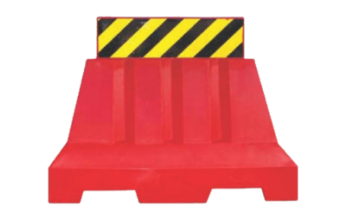

SAFETY BARRICADES
Specially In Comparison to concrete and MASS barriers, water filled barriers often end up being a cost effective security and safety solution as they could be reused throughout an incredibly long life span across locations, scenarios and different jobs. Available in a wide range of sizes and being simple to transport and set up, water filled barriers are perfect for short term uses and several different long term uses. But while concrete and MASS barrier systems may also be fit for particular purposes. One of the main benefits of water filled barriers for temporary situations are that they’re less likely to cause damage in the event of impact from site works, motorists, cyclists or pedestrians, so can end up being a safer choice than concrete.
Product Code : SIPL-5001
Dimension : 1000(L)X500(W)X800(H)mm
Water Filling Capacity : 15 Ltr.
Colors : Red & Yellow
SOLAR ROAD PRODUCTS
We provide Reliable and Premium Quality Solar Road Safety Products used for Road Safety. Solar Road Products consisting Heavy Duty Solar Panels, technical Circuit, Operating Systems and Battery for Storage of Solar energy in device. Our Products range includes Solar road Stud, Solar Delineator, Solar Flashing warning Light, Solar Traffic Blinkers, Portable Sign Boards Etc.

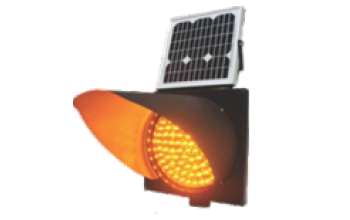

Solar Blinker Traffic Light
Product Code : SIPL- SB-400P (Polycarbonate)
Size : 400 mm
Body Material : Polycarbonate Body
Solar Panel : 20 Watts Panel With MicroControlled Solar Charger
Led : 216 Bright Led
Battery : 12 AH, Maintenance Free
Warranty : 1 Year
Also Available In Metal Body And 400 mm Dia

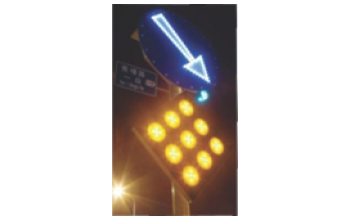

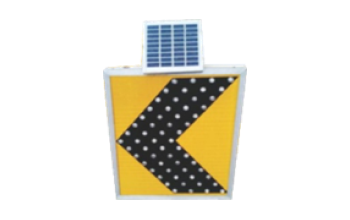

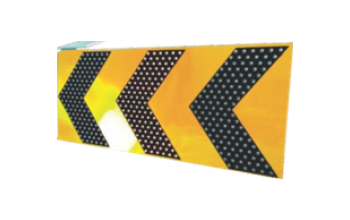

Solar Sign Board
Product Code : SIPL- SB-500
Dimension : 450 mm X 600 mm X 52 mm.
Direction : Moving & Blinking
Solar Panel : 5 Watts Panel With Micro Controlled Solar Charger
Led : 35 Bright Led Encapsulated in Convex Lense
Battery : Lion 6, 4.5 Ah Battery
Warranty : 1 Year
Solar Sign Board
Product Code : SIPL- SB-501
Dimension : 600 mm X 900 mm X 52 mm.
Direction : Moving & Blinking
Solar Panel : 5 Watts Panel With Micro Controlled Solar Charger
Led : 117 Bright Led Encapsulated in Convex Lense
Battery : Lion 6, 4.5 Ah Battery
Warranty : 1 Year
Solar Sign Board
Product Code : SIPL- SB-502
Dimension : 600 mm X 900 mm X 52 mm.
Direction : Moving & Blinking
Solar Panel : 5 Watts Panel With Micro Controlled Solar Charger
Led : 9 Bright Led Encapsulated in Convex Lense
Battery : Lion 6, 4.5 Ah Battery
Warranty : 1 Year

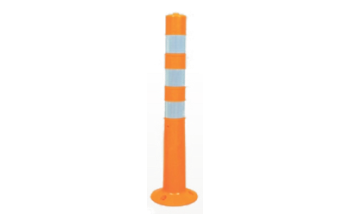

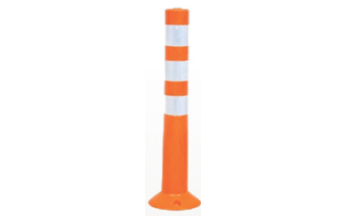

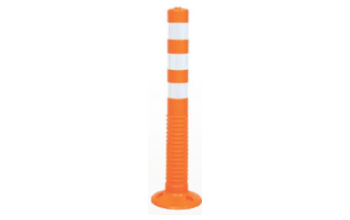

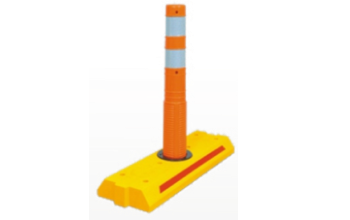

SPRING POST
We impart excellent assortment of Spring Posts for clients according to their desired specification. Operating as spring post manufacturer and supplier, we have a large available with us, offered at competitive rates.
Product Code : SIPL-801
Height : 780 mm
Upper Dia : 80 mm
Body Material : Strong Flexible UV Protected PU
Hardness : 85(-/+ 5)
Reflective Band : High Intensity Reflective Light Material crystal
Weathering Resistance : 3 Years
Product Code : SIPL-802
Height : 750 mm
Upper Dia : 80 mm
Body Material : Strong Flexible UV Protected PU &PVC
Hardness : 85(-/+ 5)
Reflective Band : High Intensity Reflective Light Material crystal Lattice
Product Code : SIPL-803
Height : 750 mm
Upper Dia : 80 mm
Body Material : Strong Flexible UV Protected PU &PVC
Hardness : 85(-/+ 5)
Reflective Band : High Intensity Reflective Light Material crystal Lattice
Product Code : SIPL-805
Dimension : Length 750 mm & width 250 mm.
Weight : 2.25 kgs
Body Material : Molded in ABS - PC Alloy, UV Stabilized
Color : Yellow & Black
